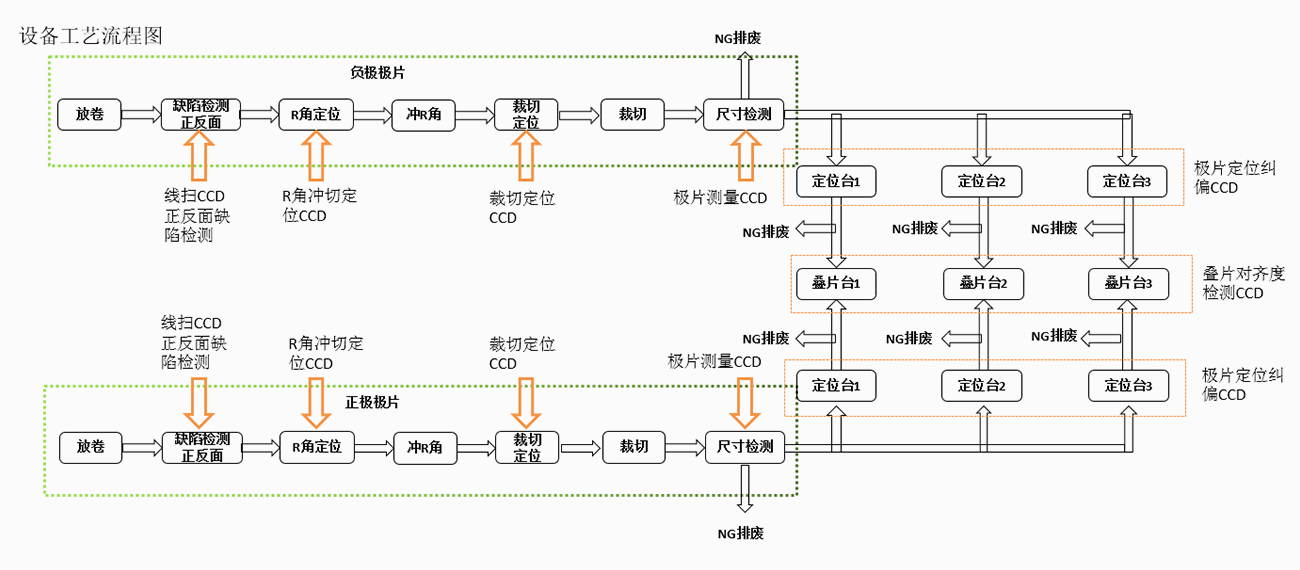

Cutting and stacking machine CCD detection system
Name | Parameter |
Detection speed: | Defect detection ≤60m/min, lamination speed 0.6S/Pcs |
Product Range: | Pole piece width: 140 - 300mm Pole piece length: 80 - 500mm |
Defect detection resolution: | 0.067mm/pix (horizontal); 0.1mm/pulse (vertical) |
Defect Detection Accuracy: | 0.3mm*0.3mm |
Overkill/missing rate: | Missing kill rate: 0%, Overkill rate: ≤0.1% GRR≤10% (standard tolerance is ±0.6mm) |
R angle positioning resolution: | 0.03*0.03mm/Pix |
Positioning accuracy: | ±0.05mm |
Crop positioning resolution: | 0.03*0.03mm/Pix |
Positioning accuracy: | ±0.05mm |
Dimensional measurement resolution: | 0.03*0.03mm/Pix |
Dimensional accuracy: | ±0.05mm |
Lamination positioning resolution: | 0.03*0.03mm/Pix |
Positioning accuracy: | ±0.05mm |
Lamination alignment resolution: | 0.03*0.03mm/Pix |
Alignment accuracy: | ±0.05mm |
Equipment Dimensions: | Compatible device manufacturers |
