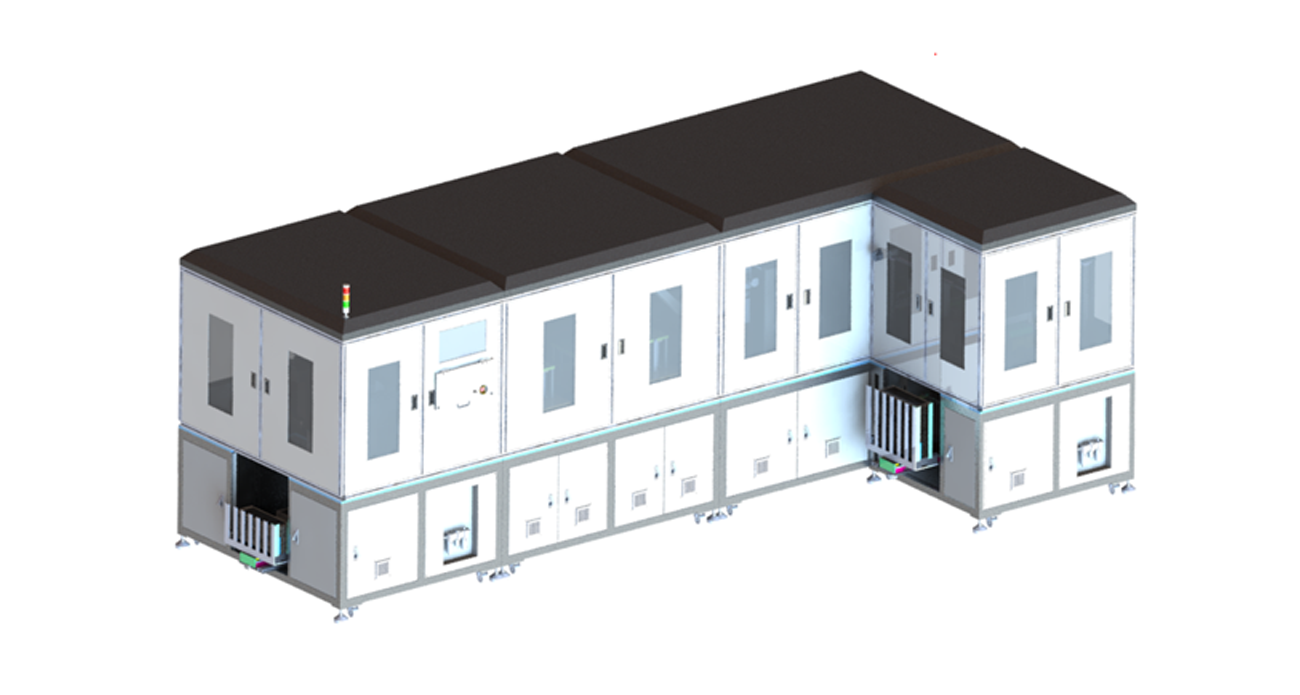

Membrane electrode CCD detector
Product Specifications:
Product Compatibility Range | Project | Specification |
Length (L) | 200～520mm | |
Width (W) | 50~200mm |
Equipment detection parameter requirements:
Technical Requirements for Roof Welding Defect Detector | |
Adapt to the operating speed of the main device | ≥8PPM |
Functional Requirements | a) It has the functions of historical data storage, query, alarm log and corresponding picture quick retrieval b) It has the functions of data detection, recording and analysis and processing c) With equipment maintenance reminder function d) It has the function of one-key calling process formula e) It has the function of interacting with MES data |
Product Size | Compatible Sizes: Width*height=402mm*102mm Width*height=442mm*138mm Width*height=306mm*136mm Width*height=412mm*144mm |
Equipment detection content:
Serial number | Detection item | Bad standard |
1 | The smallest frame can identify impurities | 0.5mm, bubble 0.5mm, crease and imprint 2mm, damage 0.5mm; |
2 | Carbon paper | Crack 1mm, damage size 1mm, abnormal color, carbon paper, glue, carbon powder, foreign matter |
3 | Proton membrane | Wrinkle 1mm |
4 | Wrapping paper can cover the whole membrane electrode | |
5 | The hollow board can cover the whole wrapping paper | |
6 | Dimensions, positioning hole and air hole size, carbon paper alignment, carbon paper misalignment | Accuracy ±0.01mm, length and width ±0.05mm |
