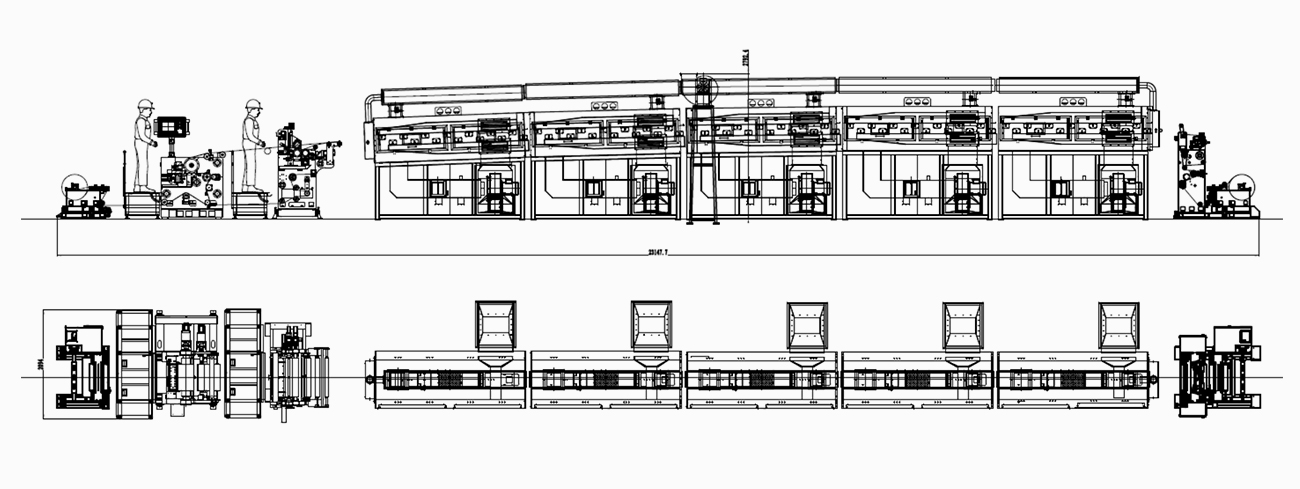

Coated CCD detection system
Name | Parameter |
Detection speed: | ≤120m/min |
Detection width: | 700mm-1550mm |
Resolution: | 0.024mm/pix (horizontal); 0.048mm/pulse (vertical) |
Dimensional detection accuracy: | ±0.1mm |
Defect Detection Accuracy: | 0.5mm*0.5mm |
Detect the number of single-sided strips: | ≤4 pieces |
Overkill/missing rate: | Misjudgment: 0%, Misjudgment: ≤0.1% GRR≤10% (standard tolerance is ±0.6mm) |
The gray scale deviation of defects and coating film needs to meet ≥30 | |
Equipment Dimensions: | Compatible device manufacturers |
Inspection content: width, alignment, defects | |
1) Coating width: | Wet material, dry material (full width, AB surface coating width, blank width, ceramic width) |
2) Alignment: | Measure the alignment of the AB side at the station of the A side dry material and the B side wet material. |
3) Defect detection: | Dirt, surface damage, scratches, streaks, bubbles, leaking metal. |
Applicable process: | Extrusion, transfer, gravure |
1) Coating process: | Continuous coating, stripe coating, intermittent coating and intermittent stripe coating. |
2) Product process: | Compatible with AT9 and concave board |
