Appearance inspection of square aluminum shell
Name | Parameter |
Detection speed: | 20PPM |
Product Range: | Length: 80-300mm Width: 20-100mm Height: 60-200mm |
Resolution: | ≤0.02mm/pixel |
Detection accuracy: | Defect detection accuracy: 0.05mm2 Scratch detection accuracy: ≥0.05mm scratch detection |
Overkill/missing rate: | Omission rate: 0%, overkill rate: ≤0.1% |
Equipment Dimensions: | 3000*2000*2200mm (can be customized) |
Applicable process: | Stamped aluminum case |

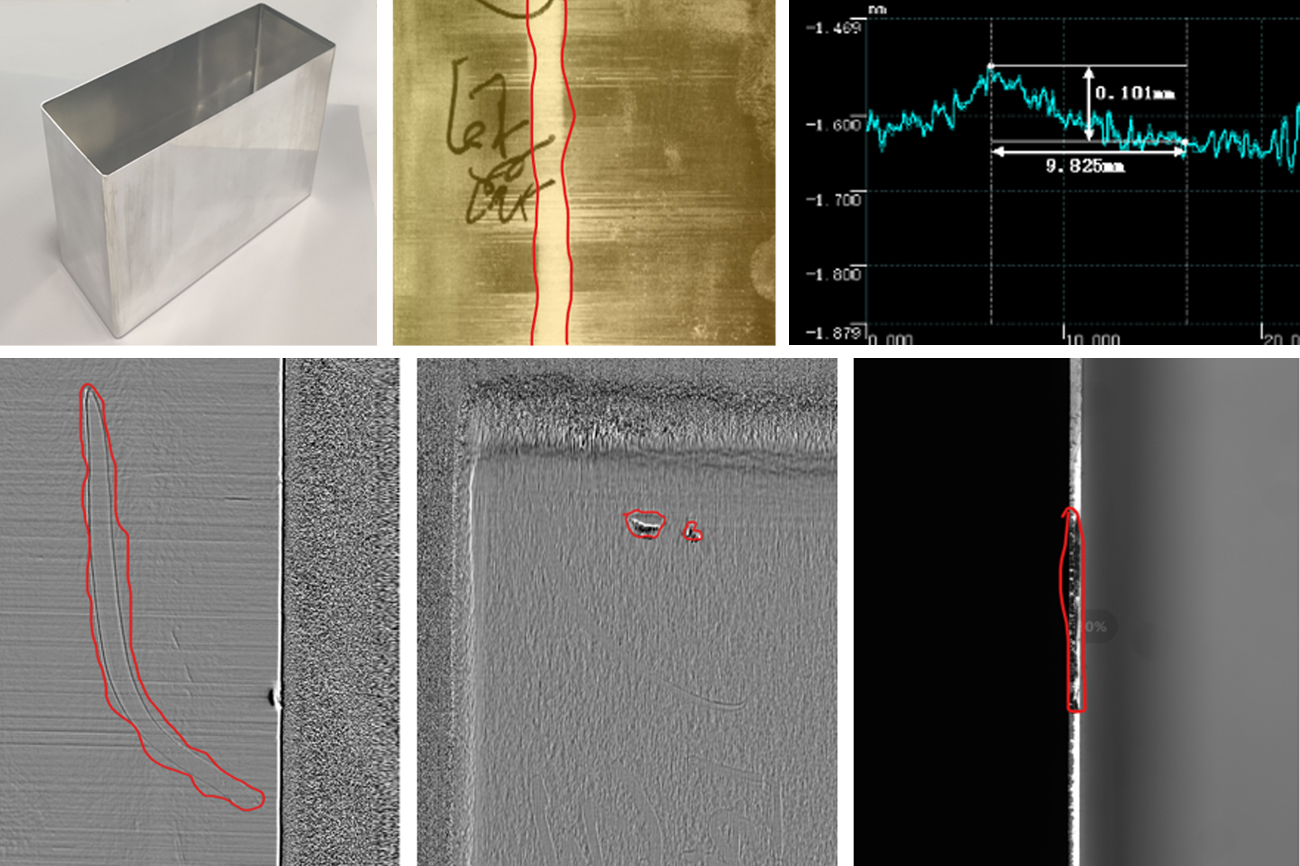

Test content: | Pits, bumps, bulges, scratches, blackening, water stains, oil stains |
