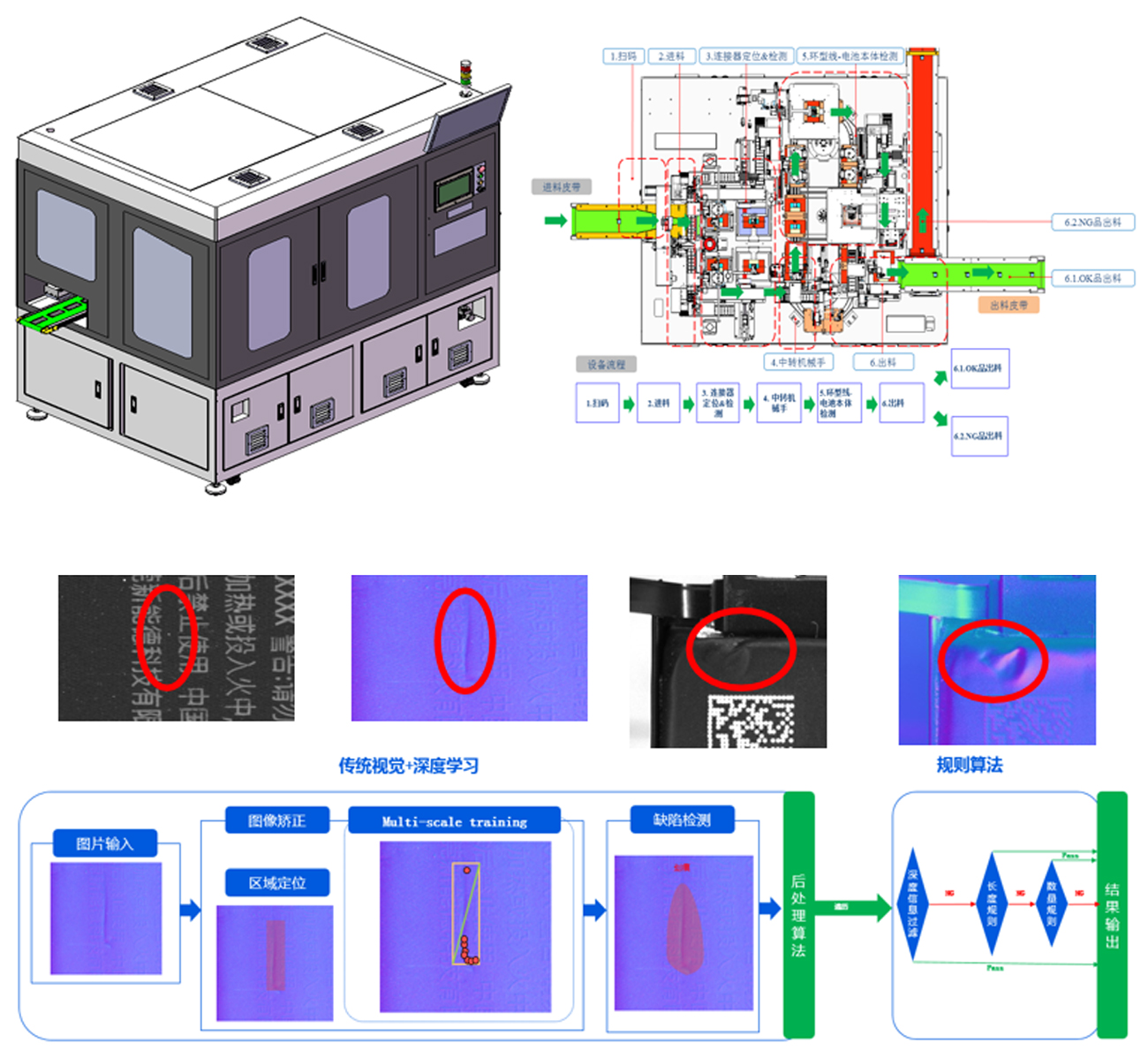

Finished battery appearance inspection machine
Name | Parameter |
Detection speed: | 9-20PPM |
Product Range: | Length 60-130mm, width 25-75mm, height 2-10mm |
In and out of the way: | Belt infeed, belt outfeed (can be customized) |
Equipment Dimensions: | Length*width*height: 2000*1500*2000mm |
Failure rate: | ≤1.5% |
Defect detection resolution: | 0.043*0.043mm/pix |
Defect Detection Accuracy: | 0.1mm*0.1mm |
Overkill/missing rate: | Omission rate: 0%, overkill rate: ≤1% |
Inspection content: body folds, bulges, pits, scratches, missing pad printing, pinholes, stains, barcode defects, aluminum leaks, dents, grooves, head deformation; appearance glue exceeds the body, wrinkles, warping, Bubbles, different colors, etc. | |
